World War I early warning acoustic mirror 650m north west of Bridge Farm

A Scheduled Monument in West Dyke, Redcar and Cleveland

More Photos »
Approximate Location Map
Large Map »

If Google Street View is available, the image is from the best available vantage point looking, if possible, towards the location of the monument. Where it is not available, the satellite view is shown instead.


Latitude: 54.598 / 54°35'52"N

Longitude: -1.0499 / 1°2'59"W

OS Eastings: 461480.608372

OS Northings: 522950.912037

OS Grid: NZ614229

Mapcode National: GBR PH38.HJ

Mapcode Global: WHF80.VP7G

Entry Name: World War I early warning acoustic mirror 650m north west of Bridge Farm

Scheduled Date: 7 November 2001

Source: Historic England

Source ID: 1020311

English Heritage Legacy ID: 34829

County: Redcar and Cleveland

Electoral Ward/Division: West Dyke

Built-Up Area: Redcar

Traditional County: Yorkshire

Lieutenancy Area (Ceremonial County): North Yorkshire

Church of England Parish: Redcar St Peter

Church of England Diocese: York


The monument includes an early 20th century military early warning device
known as a sound mirror. It is located 1.2km inland from the coast on a flat
plain on the southern side of the Tees estuary.
The mirror was part of a chain of similar acoustic devices located on the
north east coast extending from the Tyne to the Humber. They were erected to
provide early warning of potential attacks on the important industrial
complexes in the north east from ships and Zeppelins during World War I.
Little is currently known of the history and development of this particular
system and it remains something of an enigma. Successful experiments in
acoustic detection date to 1915 and it is thought that the Tees/Tyne early
warning system dates to the last two years of the war.
This mirror faces NNE and was positioned to cover the mouth of the Tees
estuary. There were at least two other mirrors known to be part of the Tees
estuary system. One was located at High Springwell 17km away on the northern
side of the estuary and was orientated to cover the north eastern approaches.
This was demolished in the 1960s. The other mirror is located overlooking
the eastern approaches to the estuary 17km to the east at Boulby and is the
subject of a separate scheduling.

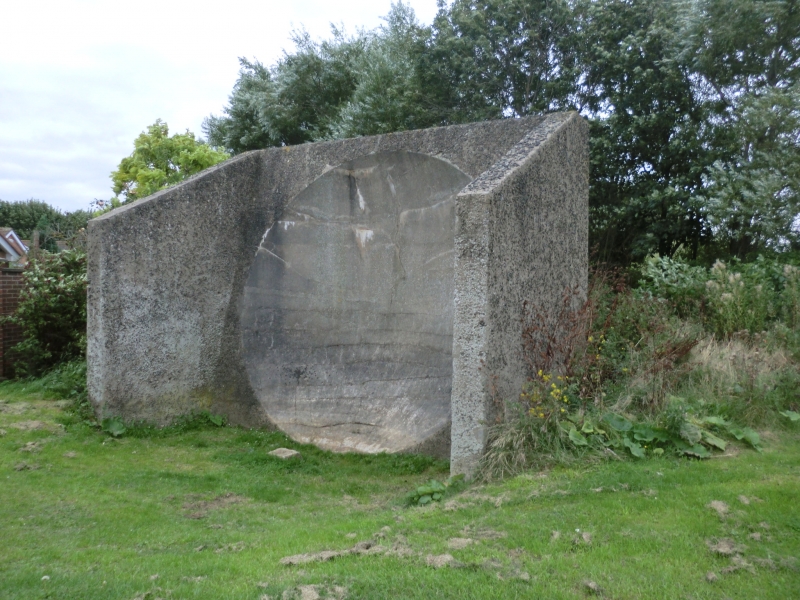

The mirror is a `U'-shaped concrete built structure comprising a thick wall
with an inclined face and a shallow concave bowl shaped into its centre. On
either side of the wall are projecting flanking walls, which helped to protect
the reflector from noise interference and also supported the structure. The
reflector is a smooth bowl 4.5m in diameter, inclined approximately 11 degrees
to the vertical. The rear wall is 5.8m in length and is 4m high. The two
flanking walls are 3.9m long. At a distance of 2.5m in front of the reflector
there is the stub of a metal pipe set vertically into the ground. This was
used to support a microphone and carried wires to the headphones of the
operator who sat in a trench nearby. The location of the trench is currently
unknown. The monument also includes a margin of 5m beyond the mirror on the
northern, western and southern sides in which remains of the listening
facilities may survive.
The mirror is Listed Grade II*.
The fence surrounding the mirror is excluded from the scheduling, although the
ground beneath it is included.

The site of the monument is shown on the attached map extract.

Source: Historic England
