Llangollen Bridge

A Scheduled Monument in Llangollen, Denbighshire (Sir Ddinbych)

Approximate Location Map
Large Map »
Street or Overhead View
Contributor Photos »

If Google Street View is available, the image is from the best available vantage point looking, if possible, towards the location of the monument. Where it is not available, the satellite view is shown instead.

Coordinates

Latitude: 52.9711 / 52°58'15"N

Longitude: -3.1702 / 3°10'12"W

OS Eastings: 321511

OS Northings: 342165

OS Grid: SJ215421

Mapcode National: GBR 6Y.JY5M

Mapcode Global: WH784.8LM5

Entry Name: Llangollen Bridge

Scheduled Date:

Source: Cadw

Source ID: 3667

Cadw Legacy ID: DE026

Schedule Class: Transport

Category: Bridge

Period: Medieval

County: Denbighshire (Sir Ddinbych)

Community: Llangollen

Built-Up Area: Llangollen

Traditional County: Denbighshire

Description

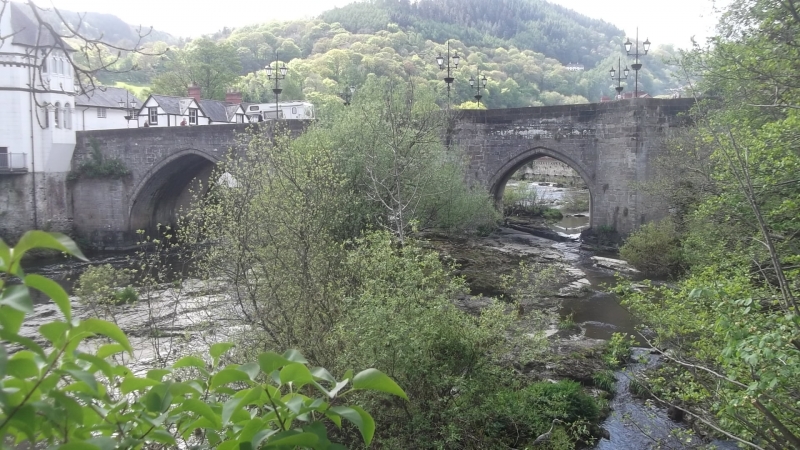

The monument consists of the remains of a bridge, dating to the medieval or post-medieval period. Llangollen Bridge is thought to have been built by Henry I, and was probably reconstructed in 1346 by Dr. John Trevor (Bishop of St Asaph 1346-1357), and then replaced in the 16th century. The bridge was extended at the north end to span the railway line in May 1863, and the parapets were rebuilt. The width of the bridge was greatly widened on the upstream side in 1873 and in 1968 it was again nearly doubled in width to the same side. The river is spanned by 4 arches, unequally pointed and with voussoirs, of coursed rubble to the older part, precast concrete to the upstream side. There are deep pointed cutwaters to both sides (taller to downstream side) and a square-headed railway opening.

The monument is of national importance for its potential to enhance our knowledge of medieval or post-medieval construction techniques and transportation systems. It retains significant archaeological potential, with a strong probability of the presence of associated archaeological features and deposits. The structure itself may be expected to contain archaeological information concerning chronology and building techniques.

The scheduled area comprises the remains described and areas around them within which related evidence may be expected to survive.
