Penrhos Engine House

A Scheduled Monument in Brymbo, Wrexham (Wrecsam)

More Photos »
Approximate Location Map
Large Map »

If Google Street View is available, the image is from the best available vantage point looking, if possible, towards the location of the monument. Where it is not available, the satellite view is shown instead.


Latitude: 53.0715 / 53°4'17"N

Longitude: -3.0676 / 3°4'3"W

OS Eastings: 328569

OS Northings: 353224

OS Grid: SJ285532

Mapcode National: GBR 72.BKCQ

Mapcode Global: WH77S.V2F5

Entry Name: Penrhos Engine House

Scheduled Date: 19 October 1990

Source: Cadw

Source ID: 3814

Cadw Legacy ID: DE203

Schedule Class: Industrial

Category: Engine house

Period: Post Medieval/Modern

County: Wrexham (Wrecsam)

Community: Brymbo

Traditional County: Denbighshire

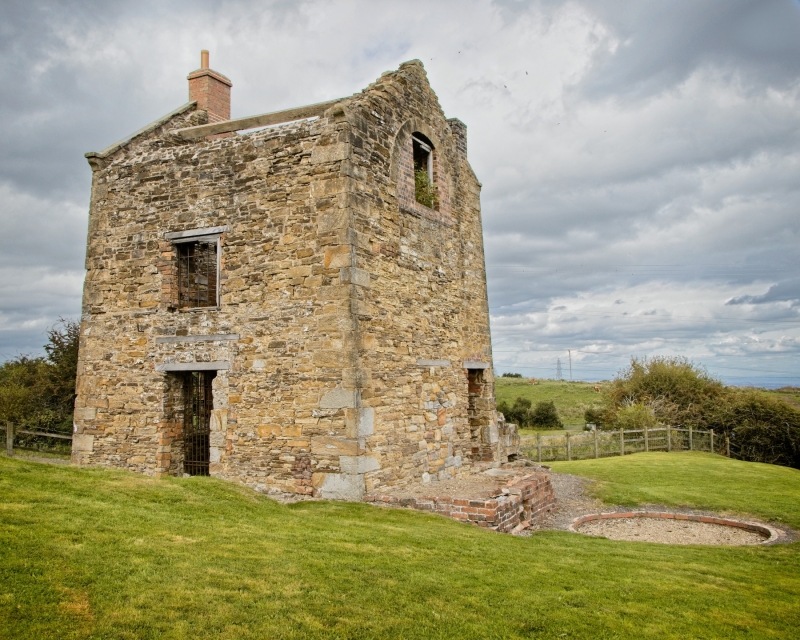

The monument consists of the remains of an engine house, dating to the 18th or 19th century. Penrhos engine house dates from about 1794 and was built by John Wilkinson to house a beam engine for pumping water from a coal mine on the site. It is believed to be the earliest surviving colliery engine house in Wales. In the 1840s the building was converted into a cottage: three floor levels and associated window openings were been inserted above the basement, two domestic-type brick chimneys were added and remains of a pigsty are visible. The building is roofless, having walls of sandstone rubble with ashlar dressings to corners and window arches. In plan, it measures approximately 6.5m square and the bob wall, adjacent to the capped mine shaft on the south-east, is 1m thick.

The monument is of national importance for its potential to enhance our knowledge of mining in Wales. It retains significant archaeological potential, with a strong probability of the presence of associated archaeological features and deposits. The structure itself may be expected to contain archaeological information concerning chronology and building techniques. An engine house may be part of a larger cluster of industrial monuments and their importance can further enhanced by their group value.

The scheduled area comprises the remains described and areas around them within which related evidence may be expected to survive.
