Gilfach Copper Mine

A Scheduled Monument in Dolbenmaen, Gwynedd

Approximate Location Map
Large Map »
Street or Overhead View
Contributor Photos »

If Google Street View is available, the image is from the best available vantage point looking, if possible, towards the location of the monument. Where it is not available, the satellite view is shown instead.

Coordinates

Latitude: 53.0069 / 53°0'24"N

Longitude: -4.1985 / 4°11'54"W

OS Eastings: 252586

OS Northings: 347774

OS Grid: SH525477

Mapcode National: GBR 5M.GLLQ

Mapcode Global: WH555.GPY5

Entry Name: Gilfach Copper Mine

Scheduled Date:

Source: Cadw

Source ID: 3180

Cadw Legacy ID: CN170

Schedule Class: Industrial

Category: Copper mine

Period: Post Medieval/Modern

County: Gwynedd

Community: Dolbenmaen

Traditional County: Caernarfonshire

Description

The monument comprises the well preserved remains of a copper mine situated by a small stream in a sheltered, shallow upland valley above a steep scarp which falls some 90 m to Cwm Pennant to the E.

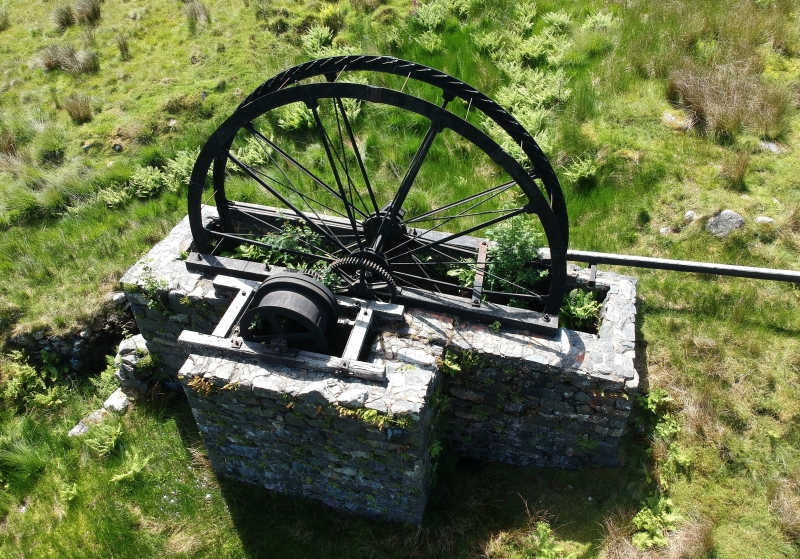

Within the SA are three open mineshafts, largely water-filled. The dominant feature is the iron water wheel, set in a stone-built wheel pit. The wheel is 24' in diameter, 3'7'' wide, and was made by Dingey & Sons, Truro. It may have generated about 20 BHP at 4.5 RPM, and power was transmitted to the winding drum (probably Cornish) by an unusual internal expanding clutch with external brake bank.

As well as the winding drum, the wheel also powered a T-bob which operated the pump rod which can be seen in one shaft. The intermediate T-bob also survives, lying loose on the site, although some of its fastening to the ground remains in situ. The wheel was fed from a raised leat which no longer survives, supplied from a small reservoir to the S which is not in the SA.

Other structures on the site include a small, tumbled, rectangular stone building next to the stream, standing to a height of 1.8 m, and a larger stone building, similarly ruined, to the SW of the wheel.

The monument is of national importance for its potential to enhance our knowledge of the Post-Medieval/Modern Industrial period.

Source: Cadw
